According to DIN 18130-1, CEN ISO/TS 17892-11. Basic module for one sample.
- Technical Data

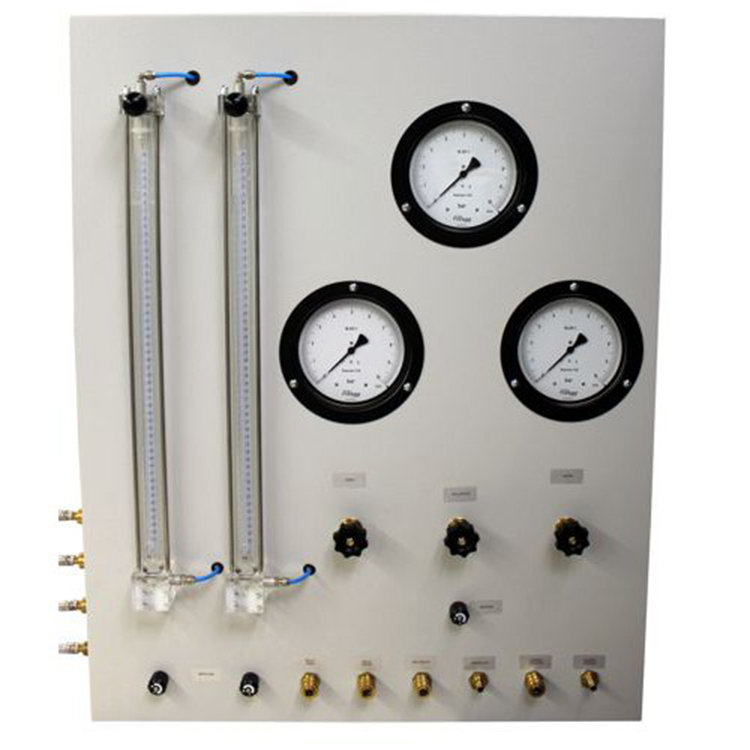

- Triaxial pressure system for cohesive soils with bothsided saturation pressure (back pressure system)
Compression-resistant up to 8 bar
User friendly and clearly visible configuration of the mountings
With three precision pressure gauges for top and bottom pressure
Two measurement burettes 50 ml and multiple valves for filling the burettes during the test
Dimensions: (W x D x H) = 800 x 200 x 1000 mm
