According to DIN 52450, EN 196-1, EN 12808-4, ASTM C490, EN 12617-4.
- Specimens
- ASTM C490: 25 x 25 x 285 mm
EN 196-1: 40.1 x 40 x 160 mm
EN 12808-4: 10 x 40 x 160 mm - Scope of delivery

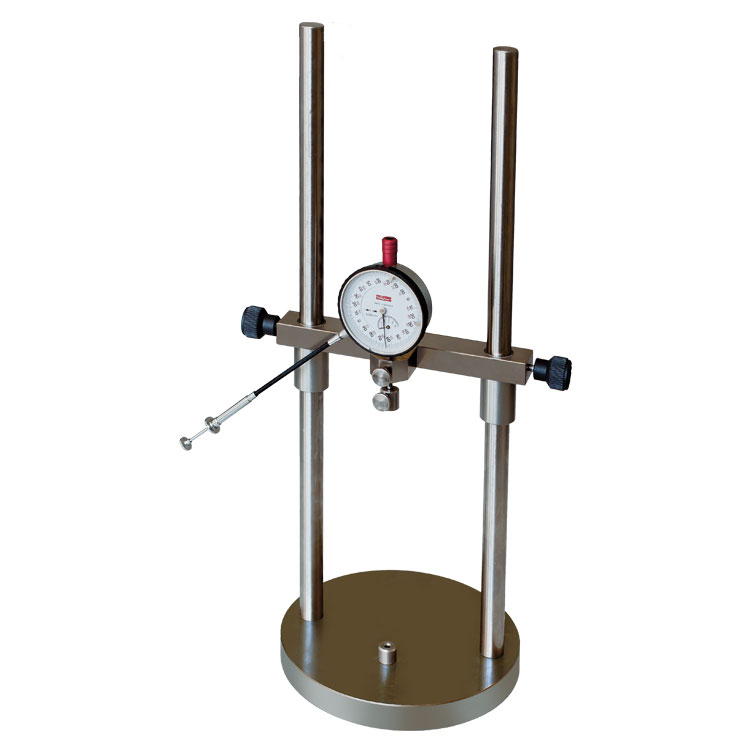

- Type B shrinkage measuring device
Precision dial gauge 5 mm pointer travel, 0.001 mm graduations
* A reference bar is not included and must be ordered as an accessory - Dimensions
- (W x D x H) = 160 x 160 x 430 mm
Weight: 4.9 kg
